Outdoor Permanent
LA
SERIES
DOOH Outdoor — Up to 10,000 Nits, IP66, 54% Slimmer
Overview
The LA Series is Leyard's flagship outdoor permanent LED — 54% thinner and 42% lighter than traditional outdoor displays, while delivering up to 10,000 nits peak brightness for maximum visibility in direct sunlight. IP66 front / IP65 rear sealed with a double-waterproof design at both cabinet and module level. At just 71mm depth and 28kg/m², it's among the most installation-friendly outdoor LED displays available — with 100% front or rear maintenance and a standard curved cabinet option for naked-eye 3D content.
Available Models
LA06S
P6.67mm
LA10S
P10mm
Applications
- Roadside and highway DOOH billboards
- Building facades and architectural LED
- Shopping mall and retail centre exteriors
- Sports stadium perimeter boards
- Transport hubs — airports, train stations, bus interchanges
- Entertainment precincts and venue exteriors
- Pedestrian plazas and public space installations
Key Features
Up to 10,000 nits — maximum visibility in Australian sunlight
IP66 front / IP65 rear — double waterproof at cabinet and module level

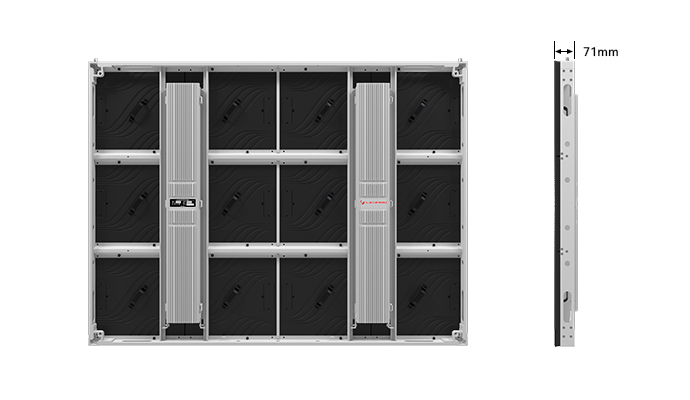

71mm depth — 54% thinner than traditional outdoor LED
28 kg/m² — 42% lighter than traditional outdoor LED
−30°C to +60°C operating range — handles full Australian temperature extremes
100% front or rear maintenance — no scaffolding required for service
No AC required — 25% lower power than comparable products
Standard curved cabinet option for naked-eye 3D installations
16-bit processing for smooth gradients in large-format content
Product Gallery
Technical Specifications
| Pixel Pitch | P6.67mm (LA06S) / P10mm (LA10S) |
| LED Type | SMD (outdoor rated) |
| Peak Brightness | 7,500 nits (LA06S) / 8,000–10,000 nits (LA10S) |
| Refresh Rate | ≤3,840Hz at 60Hz input |
| Bit Processing | 16-bit |
| Viewing Angle (H/V) | 160° / 140° |
| Cabinet Size (W×H×D) | 1,280 × 960 × 71mm |
| Cabinet Weight | 35 kg |
| Weight per m² | 28 kg/m² |
| IP Rating (Front / Rear) | IP66 / IP65 |
| Colour Temperature | 3,000K – 10,000K adjustable |
| Operating Temperature | −30°C to +60°C |
| Storage Temperature | −40°C to +60°C |
| Operating Humidity | 10–90% RH |
| LED Lifespan | 100,000 hours |
Specifications subject to change. Consult LUX for final configuration details applicable to your project.
