Touring / Rental
LN
SERIES
Flexible Rental LED — Indoor, Outdoor, and Virtual Production
Overview
The LN Series is Leyard's flagship touring LED — built for fast setup, reliable performance, and the flexibility to work in almost any configuration. Quick-lock connections, high-quality die-cast aluminium cabinets, and IP-rated moisture and dust protection make it the go-to panel for concerts, conferences, exhibitions, and sports events. High Brightness S variants (LN2.9S, LN3.9S, LN4.8S) hit 4,000 nits for semi-outdoor use. All LN panels support XR/AR/VR virtual production.
Available Models
LN1.9
P1.95mm
LN2.6
P2.6mm
LN2.9
P2.97mm
LN3.9
P3.9mm
LN2.9S
P2.97mm
LN3.9S
P3.9mm
LN4.8S
P4.8mm
Applications
- Concert and music festival stage backdrops
- Corporate conferences and product launches
- Exhibition and trade shows
- Awards nights and gala events
- Sports event LED walls and scoreboards
- XR / virtual production stages
- Collaborative gaming and volumetric visualisation
Key Features

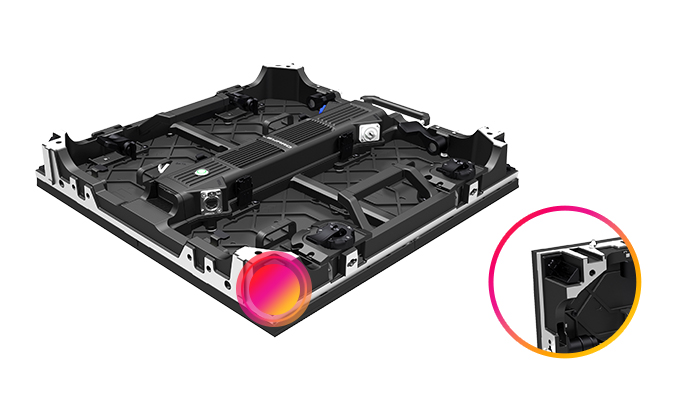

Dual cabinet heights — 500×500mm and 500×1000mm for flexible configurations
Quick Locks for rapid, secure cabinet assembly and disassembly
Angle Adjustment Locks — concave/convex curves from −10° to +10°
S variants (LN2.9S, LN3.9S, LN4.8S) at 4,000 nits — semi-outdoor capable
Moisture and dust protection — indoor and outdoor event use
100% rear maintenance for modules, power, and receiving cards
Edge protection design prevents LED damage during transport
Floor screen configuration supported (500×500mm cabinets)
XR/AR/VR virtual production compatible — natural reflections, real-time 3D
7,680Hz max refresh rate for in-camera production
Product Gallery
Technical Specifications
| Pixel Pitch Range | P1.95mm – P4.8mm |
| LED Type | SMD |
| Standard Brightness | 1,000 nits |
| High Brightness (S models) | 4,000 nits |
| Refresh Rate | ≥3,840Hz / ≥7,680Hz |
| Viewing Angle (H/V) | 160° / 140° |
| Cabinet Size (W×H×D) | 500×500×79mm / 500×1000×79mm |
| Max Power Consumption | 600 W/m² |
| Avg Power Consumption | 200 W/m² |
| Curvature | Concave / Convex −10° to +10° |
| Operating Temperature | −20°C to +40°C |
| Operating Humidity | 10–80% RH |
| Lifespan | 100,000+ hours |
Specifications subject to change. Consult LUX for final configuration details applicable to your project.
