Commercial Indoor
HKS II
SERIES
Type-C Modules, Magnetic Connectors — Simplified Commercial LED
Overview
The HKS II Series redefines simplicity in commercial LED installation. Type-C cables combine both data and power for each module, magnetic floating connectors ensure precision flatness with no manual alignment, and the snap-lock structure makes the cabinet ready to install in minimal time. At just 26mm minimum thickness and 6.5kg per cabinet, it's engineered for spaces where speed of installation, slim profile, and long-term reliability matter most.
Available Models
HKS1.2 II
P1.25mm
HKS1.5 II
P1.53mm
HKS1.8 II
P1.86mm
HKS2 II
P2.0mm
HKS2.5 II
P2.5mm
Applications
- Brand centres and flagship retail
- Museum and gallery installations
- Meeting rooms and training rooms
- Exhibition centres
- Artistic and theme installations
- Corporate and SME office environments
Key Features
Type-C cables — single cable carries both data and power per module
Magnetic floating connectors — precision flatness, no manual alignment
26mm minimum cabinet thickness — ultra-slim profile
6.5kg per cabinet — extremely lightweight
4,800Hz refresh rate — one of the highest in the commercial range
8,000:1 contrast ratio for strong blacks in ambient light
3D and HDR display support
Ultra-wide colour gamut with consistent reproduction across viewing angles

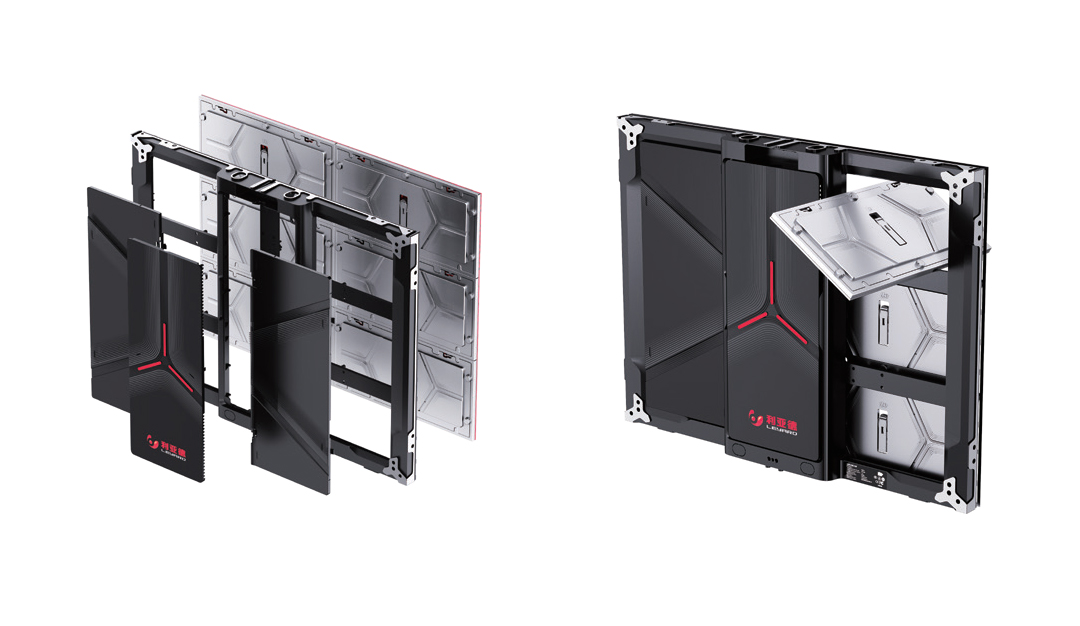

Snap-lock modular structure with internal hidden wiring
P1.25mm through P2.5mm — broad commercial pixel pitch range
Product Gallery
Technical Specifications
| Pixel Pitch Range | P1.25mm – P2.5mm |
| LED Type | SMD |
| Brightness | ≥500 nits (P1.25–P2.0) / ≥500–600 nits (P2.5) |
| Contrast Ratio | 8,000:1 |
| Refresh Rate | ≥4,800Hz |
| Viewing Angle (H/V) | 160° / 140° |
| Cabinet Size (W×H×D) | 640 × 480 × 64mm (with module) |
| Min Cabinet Depth | 54mm (without module) |
| Cabinet Weight | 6.5 kg |
| Cabinet Area | 0.3072 m² |
| Colour Temperature | 3,000K – 38,000K adjustable |
| Max Power | 117W per cabinet (380W/m²) |
| Avg Power | 39W per cabinet (128W/m²) |
| Operating Temperature | −10°C to +40°C |
| Storage Temperature | −20°C to +60°C |
| Operating Humidity | 10–80% RH |
| Lifespan | 100,000+ hours |
Specifications subject to change. Consult LUX for final configuration details applicable to your project.
INTERESTED IN THE
HKS II SERIES?
Tell us about your project and we'll provide a tailored recommendation and no-obligation quote for your specific requirements.
