Commercial Indoor
VHC
SERIES
All-in-One Commercial LED — Right-Angle Edges, Dual Backup
Overview
The VHC Series is a comprehensive commercial LED solution covering seven pixel pitches from P1.25mm to P4mm — all in a 640×480mm cabinet with an edge cut for seamless right-angle corner installations. The ALL-IN-ONE design integrates display, processing, and control with dual power supply and dual signal backup for reliable operation. Full front access makes it ideal for installations where rear access is impractical.
Available Models
VHC32F012
P1.25mm
640,000 px/m²
VHC32F015
P1.59mm
394,384 px/m²
VHC32F018
P1.88mm
283,333 px/m²
VHC32F020
P2.0mm
250,000 px/m²
VHC32F025
P2.5mm
160,000 px/m²
VHC32F030
P3.076mm
105,625 px/m²
VHC32F040
P4.0mm
62,500 px/m²
Applications
- Conference centres and meeting rooms
- Control centre secondary displays
- Broadcast monitoring walls
- Exhibition centres
- Corporate lobbies — including right-angle column wraps
- Home cinema
Key Features
Seven pixel pitch options from P1.25mm to P4mm in a single product family
Edge-cut corners — seamless right-angle and column-wrap installations
ALL-IN-ONE design — integrated display, processing, and control
Dual power supply and dual signal backup

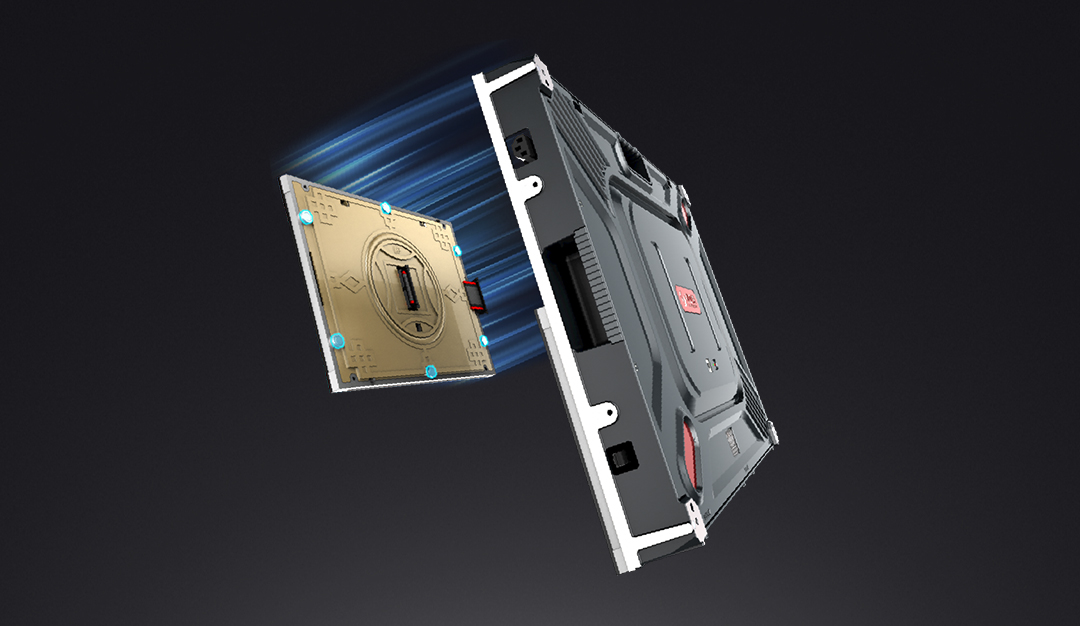

Full front access panel — no rear access required
5,000:1 contrast ratio
3,840Hz high refresh rate
HDR support with 16-bit + 9-bit processing
Wide viewing angle: 160° H / 140° V

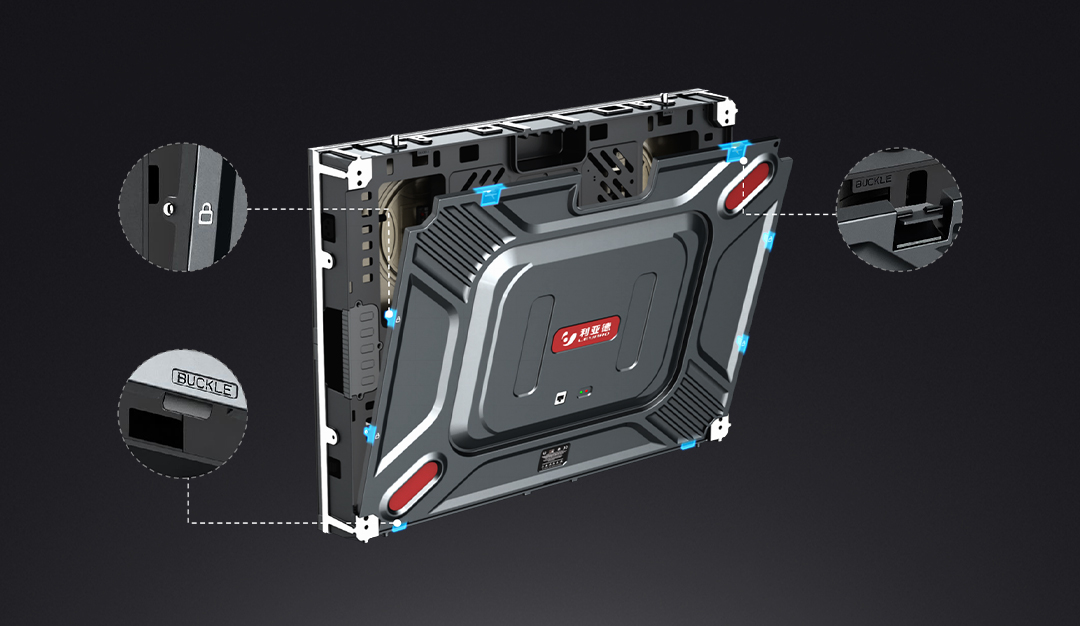

Product Gallery
Technical Specifications
| Pixel Pitch Range | P1.25mm – P4mm |
| LED Type | SMD |
| Contrast Ratio | 5,000:1 |
| Refresh Rate | 3,840Hz |
| Viewing Angle (H/V) | 160° / 140° |
| Cabinet Size (W×H×D) | 640 × 480 × 72mm |
| Colour Temperature | 3,000K – 10,000K adjustable |
| Power Supply | Dual (backup) |
| Signal Input | Dual (backup) |
| Operating Temperature | −20°C to +40°C |
| Operating Humidity | 10–80% RH |
Specifications subject to change. Consult LUX for final configuration details applicable to your project.
