Curved Fine Pitch Indoor
TXC
SERIES
Curved Micro LED — Seamless Concave and Convex Surfaces
Overview
The TXC Series shares the same Micro LED core technology as the TXF — but builds it into a cabinet designed specifically for curved installations. With a minimum curved diameter of 3m, seamless concave and convex surfaces, and a 95% black display area on the COB variant, the TXC enables architectural LED installations that conventional flat panels simply cannot achieve.
Available Models
TXC0078
P0.78mm
1,638,400 px/m²
TXC0093
P0.9375mm
1,137,778 px/m²
TXC0125
P1.25mm
640,000 px/m²
Applications
- Curved architectural feature walls
- Cylindrical and column-wrap installations
- Exhibition and museum immersive environments
- Broadcast studio curved backdrops
- Retail flagship curved displays
- Dome and concave ceiling installations
Key Features
Concave and convex curved design — minimum 3m diameter
Smooth, seamless curved surface with no visible joints
95% black display area (COB variant) for exceptional ambient contrast
Shares TXF Micro LED core — same brightness and resolution specs
Mini LED flip-chip (100–200μm) for high uniformity

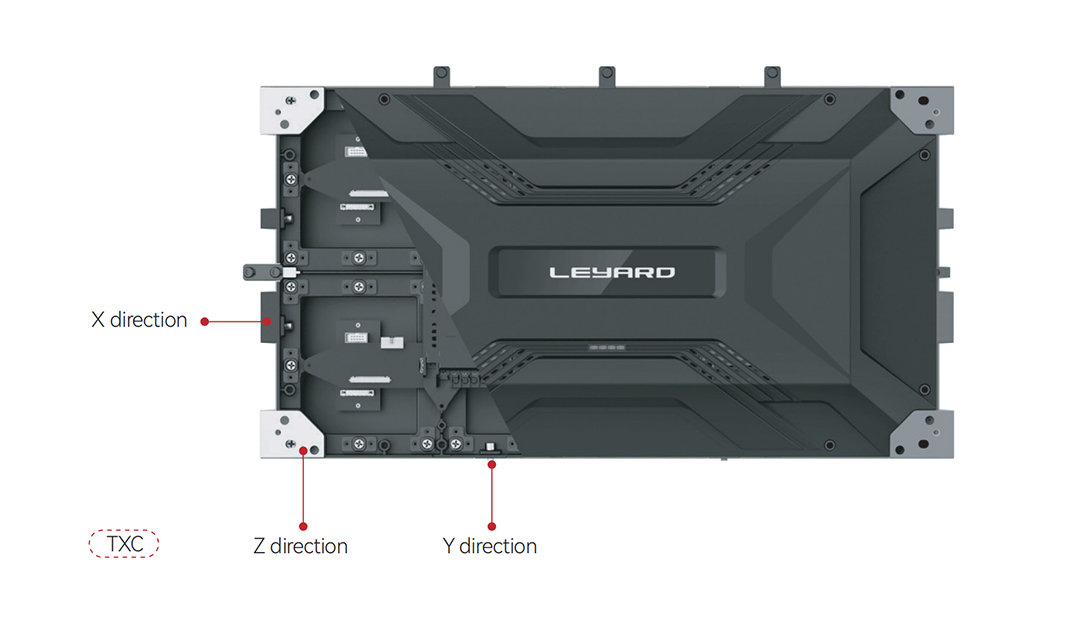

6-axis alignment for precise seam-free tiling
Common cathode drive — 50% energy saving
10-bit HDR with 120Hz 2D high frame rate
Pixel-by-pixel brightness and colour calibration
Product Gallery
Technical Specifications
| Pixel Pitch Range | P0.78mm – P1.25mm |
| LED Technology | Leyard Micro LED |
| Drive Mode | Common cathode constant current |
| Peak Brightness | ≥1,200–2,000 nits |
| White Balance Brightness | 800–1,200 nits |
| Contrast Ratio | ≥10,000:1 – ≥20,000:1 |
| Refresh Rate | 3,840Hz |
| Greyscale | 25-bit |
| Colour Temperature | 3,000K – 10,000K adjustable |
| Brightness Uniformity | ≥97% |
| Viewing Angle (H/V) | 170° / 150° |
| Cabinet Size (W×H×D) | 600 × 337.5 × 100mm |
| Surface Flatness | ≤0.1mm |
| Minimum Curve Diameter | 3,000mm |
| Operating Temperature | −10°C to +40°C |
| Operating Humidity | 10–80% (no condensation) |
| Lifespan | 100,000+ hours |
Specifications subject to change. Consult LUX for final configuration details applicable to your project.
