Fine Pitch Indoor
MG-2
SERIES
Next-Generation Indoor Fine Pitch — Entry to Premium
Overview
The MG-2 Series covers the market from entry-level commercial through to premium corporate installations — offering Micro 4-in-1 LED technology on the P1.25mm flagship and SMD on wider pitches. At just 4.5kg per cabinet and 45mm depth, it's one of the thinnest and lightest indoor displays in its class. GOB-ready modules with front-access installation make the MG-2 a practical choice for projects where serviceability matters.
Available Models
MG0125-2 Micro
P1.25mm
640,000 px/m²
MG0125-2 SMD
P1.25mm
640,000 px/m²
MG0156-2
P1.5625mm
409,600 px/m²
MG0187-2
P1.875mm
284,444 px/m²
MG0250-2
P2.5mm
160,000 px/m²
Applications
- Design and brand centres
- Corporate lobbies and reception areas
- Broadcast studios and production facilities
- Conference and training rooms
- Exhibition centres
- Healthcare and institutional environments
Key Features
Micro 4-in-1 LED (P1.25mm) and SMD (P1.5–P2.5mm) in one product family
GOB-ready module — waterproof, easy-to-clean surface
Only 4.5kg per cabinet — among the lightest in class
45mm cabinet depth — ultra-slim wall integration
16-bit greyscale for more detail at low brightness
HDR with 10-bit colour depth

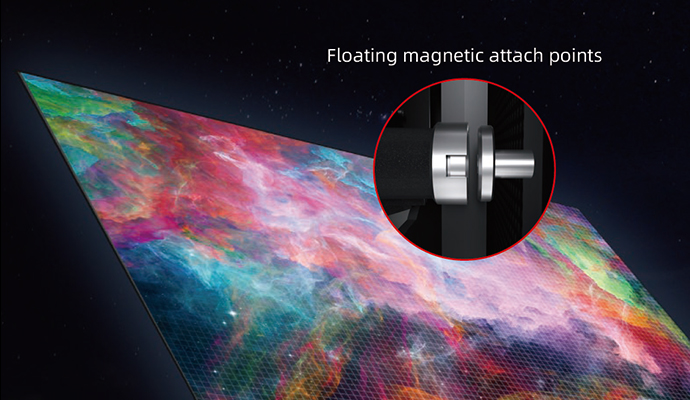

Floating connectors — time-proven connection reliability
Front-access installation with fast module replacement
Dual interface LED modules — flexible signal routing
Product Gallery
Technical Specifications
| Pixel Pitch Range | P1.25mm – P2.5mm |
| LED Technology | Micro 4-in-1 LED (P1.25) / SMD (P1.5–P2.5) |
| Contrast Ratio | 20,000:1 (Micro) / 5,000:1 (SMD) |
| Refresh Rate | ≥3,840Hz |
| Greyscale | 16-bit |
| Cabinet Size (W×H×D) | 600 × 337.5 × 45mm |
| Cabinet Weight | 4.5 kg |
| Cabinet Area | 0.2025 m² |
| Max Power Consumption | 346–515 W/m² |
| Avg Power Consumption | 77–158 W/m² |
| Operating Temperature | −20°C to +40°C |
| Operating Humidity | 10–90% RH |
| Lifespan | 100,000+ hours |
Specifications subject to change. Consult LUX for final configuration details applicable to your project.
