Control Room
VCS
SERIES
Full Flip Chip COB — Wire-Free Internal Connections for Control Rooms
Overview
The VCS Series is Leyard's purpose-built control room display — combining Full Flip Chip COB technology with a 3-in-1 integrated design and internal power/signal connectors that create a wire-free video wall. IP54 rated with 160° wide viewing angles, it's engineered for the demanding conditions of traffic management centres, security operations, network operations, and emergency dispatch environments.
Available Models
VCS009 C337.5
P0.9375mm
1,137,777 px/m²
VCS012 C337.5
P1.25mm
640,000 px/m²
VCS015 C337.5
P1.5625mm
409,600 px/m²
VCS018 C337.5
P1.875mm
284,444 px/m²
Applications
- Traffic management and transport control rooms
- Security operations centres (SOC)
- Network operations centres (NOC)
- Utilities and energy control rooms
- Emergency services dispatch
- Government and defence command centres
- Broadcast monitoring and production control
Key Features
Full Flip Chip COB technology — robust, high contrast, durable
3-in-1 integrated design with internal power and signal connectors (wire-free video wall)
IP54 protection rating — dust-proof and splash-resistant
160° H/V wide viewing angle across all operator positions
3,840Hz ultra-high refresh rate — no flicker under any camera or lighting
Highly precise die-cast aluminium housing — ±0.01mm CNC accuracy
Full front maintenance capability — no rear access required
4H hardness surface rating
Perfect axis alignment for homogeneous, flat appearance across the wall

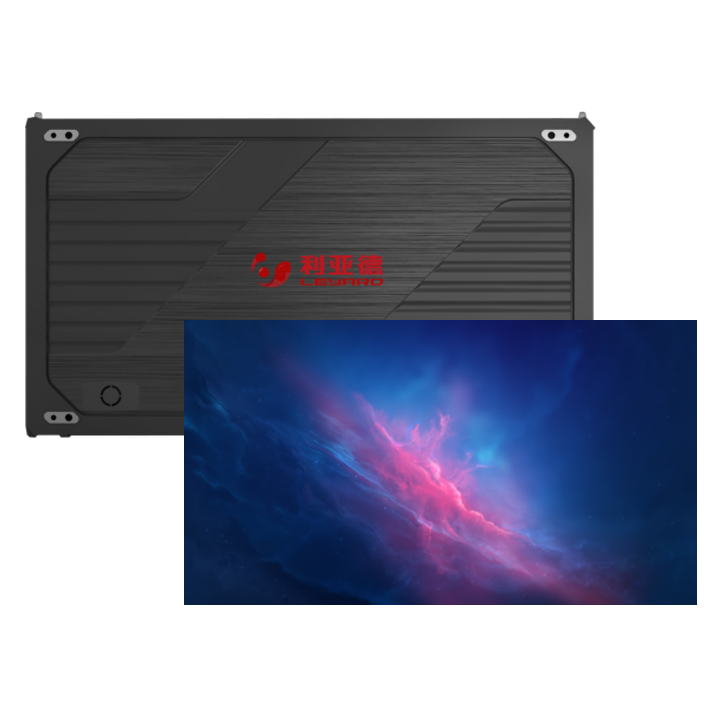

Product Gallery
Technical Specifications
| Pixel Pitch Range | P0.9375mm – P1.875mm |
| LED Technology | Full Flip Chip COB |
| IP Rating | IP54 |
| Refresh Rate | ≥3,840Hz |
| Viewing Angle (H/V) | 160° / 160° |
| Cabinet Size (W×H×D) | 600 × 337.5 × 39.75mm |
| Surface Hardness | 4H |
| Connectors | Internal (wire-free video wall assembly) |
| Operating Temperature | −10°C to +40°C |
| Storage Temperature | −20°C to +60°C |
| Operating Humidity | 10–80% RH |
| Storage Humidity | 10–85% RH |
Specifications subject to change. Consult LUX for final configuration details applicable to your project.
